IH5447B01
Design | Features | Technical Data | Planning Information
A strong partner
Compact, powerful, energy-efficient, and low-cost – the berbel Smartline range. A wall-mounted hood that impresses onlookers with its extremely slim body design. The dual vapour intake of the Smartline wall-mounted hood ensures optimum air cleaning during boiling, frying, and steaming.
The three-level keypad with automatic afterrun and light control is impressively convenient. Energy-saving LEDs discreetly light up the hob. And the collection tray of the wall-mounted hood can be easily cleaned in a dishwasher.
A slender shape
Its slender shape has a clear design vocabulary. Made completely from anti-magnetic stainless steel, it benefits from perfect workmanship down to the finest detail. With its minimalistic appearance, it appealingly sets the scene for duck breast, pasta, or vegetable quiche. The three-level keypad with automatic afterrun and light control is impressively easy to use.
A compact kitchen professional
Advanced BackFlow technology ensures optimum vapour capture: A gentle airflow from the side areas and additionally from the front leads the rising vapours to the suction gap in the middle. The separation unit, consisting of centrifugal separation and capillary trap, can be completely removed and cleaned in the dishwasher together with the collection tray. Comfortable and time-saving.
Hood Technical Data:
Category: Worktop Hoods
Size: 40cm
Duct Out Version: Intern (Duct Out / Recirculation)
Finish: Inox + Tempered Glass
Performance Data:
Max Flow Rate: 780 m³/h
Max Noise Level: 61 dB(A)
Total Absorption: 182W
Filter: Aluminium Cassette Filter + Optional Carbon Filter
Control: 3S+B Smart Touch Control
Lighting: 1x7W LED Stripe
Duct Size: 150mm
| Hob Features | |
|---|---|
| Type | Built-in |
| Size | 30cm |
| Color | Black |
| Comfort Features | |
| Induction Zones | 2 |
| Features | Booster, Touch Control, Timer |
| Safety | |
| Safety Feature | Child Safety Lock |
| Other Features | |

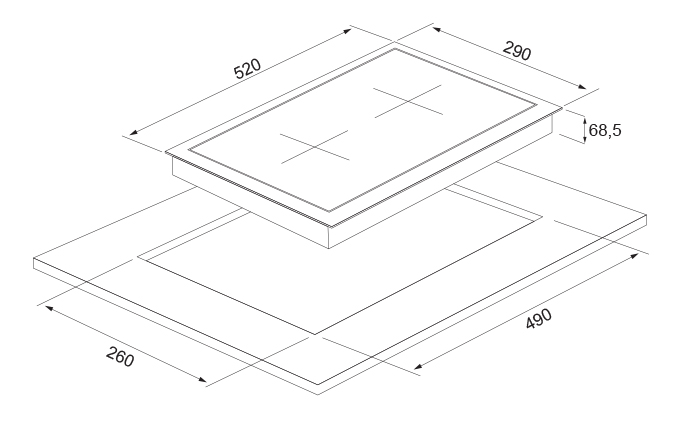

| Product Dimensions (WxDxH) | 290 x 520 x 68.5mm |
| Cut Out Dimensions (WxDxH) | 260 x 490mm |
| Front Right Zone Size / Power | 180mm / 1200 W (1500 W boost) |
| Rear Right Zone Size / Power | 180mm / 2000 W (2300 W boost) |
| Maximum Power | 3500 W |
